Lub tshuab Skived fin, siv tag nrho cov txhuas los yog tooj liab thiab siv lub tshuab skived tshwj xeeb rau skive fins nrog cov qauv sib txawv thiab qee qhov tuab thiab qhov siab. Los ntawm kev siv cov tshuab no los ua tusskiving fin kub dab dej.
Qhov zoo:
(1) Zoo meej conductivity ntawm lub hauv paus thiab fins. Vim tias skived fin heat sink yog tag nrho cov profile yam tsis muaj qhov sib txuas, uas tuaj yeem muab kev ua si tag nrho rau cov yam ntxwv ntawm cov cua sov dissipation.
(2) High density fin, Awind skived fin txheej txheem tuaj yeem ua rau cov skived fin ntau thinner thiab denser, nrog ntau dua kev hloov hluav taws xob.
(3) Kev txheeb ze rau lwm yam kev siv thev naus laus zis, los ntawm kev siv skiving fin technology tib lub ntim ntawm cov ntaub ntawv raw tuaj yeem txiav tawm ntau qhov chaw tshav kub dissipation, thiab kev ua haujlwm kub hloov tau ruaj khov dua.
(4) Piv nrog txhuas extrusion thiab lwm yam txheej txheem, skived fin heat sink yog tsawg dua qhov loj thiab tuaj yeem ua kom dav dua, uas tuaj yeem siv rau kev hloov hluav taws xob ntawm cov tshuab nrog lub zog loj.
(5) Customized skiving fin heat sink tsis xav tau cov cuab yeej kim tab sis tuaj yeem muab kev tsim qauv yooj yim dua. Hloov chaw, txhua qhov skiving fin raug txiav cais siv tib lub cuab yeej uas tso cai rau cov nqi qis dua.
Khoom siv:
Cov khoom ntawm skiving fin heat sink feem ntau yog siv txhuas lossis tooj liab.
Copper: Nyob ntawm qhov inclination thiab thickness, qhov siab ntawm fin tuaj yeem ncav cuag 50mm, thiab inclination ntawm fin yog 1 hli.
Aluminium: Nyob ntawm qhov inclination thiab thickness, qhov siab ntawm fin tuaj yeem ncav cuag 50mm, thiab qhov inclination ntawm fin yog 1.3mm.

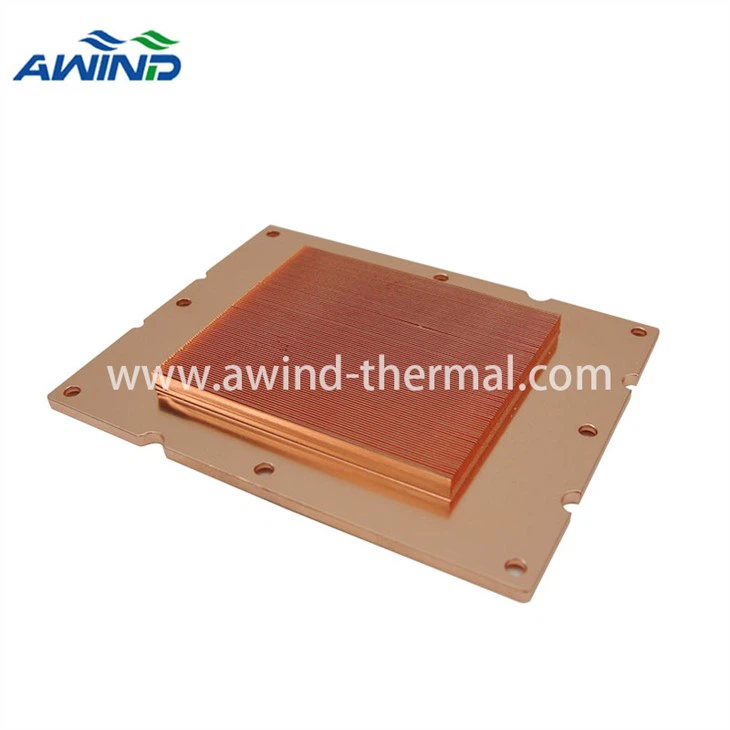

(Copper skiving fin heat sink)
(Aluminium skiving fin kub dab dej)
Skiving Specification
mm | Al | Cu |
Fin qhov siab | 2~150 | 4~100 |
Fin thickness | 0.1~2 | 0.2~2 |
Fin dav | 2~500 | 2~350 |
Suab | 0.35~ | 0.35~ |
Base thickness | 2~ | 2~ |
Txoj kev Skiving fin
Siv tag nrho ib daim ntawm txhuas los yog tooj liab thiab siv lub tshuab skived tshwj xeeb los txiav tawm cov fins nrog cov qauv sib txawv thiab qee qhov tuab thiab qhov siab. Thaum tshav kub kub dab dej tuaj yeem tsim nyob rau hauv ib qho kev ua tsis muaj vuam.
Ua ntej (Raw khoom) | Tom qab (Skiving fin heatsink) |
Kauj Ruam 1: Txiav
Txiav cov khoom siv raw rau hauv ntu, txhua ntu yog li 500mm ntev.
Kauj ruam 2: Skiving txheej txheem
Nkag mus rau cov ntaub ntawv cov khoom rau lub tshuab, xws li qhov sib nrug, qhov siab, tuab thiab lwm yam ntaub ntawv.
Pib lub tshuab, engineers saib xyuas lub tshuab, tshuaj xyuas cov khoom ib nrab kom paub tseeb tias nws ua tau raws li cov ntaub ntawv xav tau.
(Skiing tshuab)
(Skiving Fin)
Kauj Ruam 3: Kev Ua Haujlwm
Raws li cov neeg siv khoom xav tau, ua cov txheej txheem semi-tiav skiving fin kub dab dej.
Dicing
Txiav lub semi-tiav skiving fin heatsink rau hauv cov blocks
CNC machining
Txhuam nto tiav
Sib tsoo
Daim ntawv thov
Skived fin kub dab dej yog tsim nyog rau kev lag luam nrog siab thermal ceev thiab siab zog dissipation yuav tsum tau, uas yog dav siv nyob rau hauv lub hwj chim, kev kho mob, kev sib txuas lus, muaj kev tswj, lub hauv paus chaw nres tsheb, them pawg, inverter, xws li, cua zog converter, LED teeb thiab server kev lag luam.
