(Cov duab khoom yog peb lub dab dej kub kawg, txais tos hu rau peb kom paub ntxiv)
Kub yaj xyaum
Cov txheej txheem kub-melt drilling yog cov txheej txheem chip-dawb uas ua cov qhov thiab cov bushings ntawm lub phaj hlau ib zaug, hloov cov txheej txheem muag khoom ntawm vuam (riveting) ceev ntawm lub phaj nyias. Kub-melt laum yog ua los ntawm cov ntaub ntawv hnav-resistant thiab kub-resistant carbide.
Txoj haujlwm ua haujlwm:

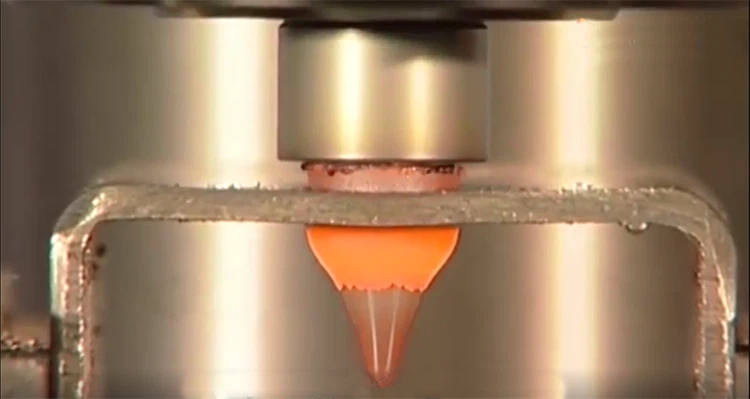

Thaum lub cuab yeej nyob rau hauv kev sib cuag nrog lub workpiece, lub siab rotational ceev (1000 ~ 3500) thiab qhov tsim nyog axial thrust (feed quab yuam) ua rau muaj kev sib txhuam hnyav ntawm lub laum thiab lub workpiece, thiab qhov kub thiab txias mus txog 650.degreerau 750degreeC nyob rau hauv ib qho instant.
Cov hlau nyob rau hauv cheeb tsam ze ntawm lub laum me ntsis softens sai, thiab axial siab txuas ntxiv mus rau sai extrude bosses thiab bushings txog 3 npaug ntawm cov thickness ntawm thawj phaj ntawm lub sab sauv thiab sab saum toj ntawm lub workpiece.Tag nrho cov txheej txheem tsuas yog siv sijhawm 2-6 vib nas this.
Rau kev ua haujlwm uas yuav tsum tau sib koom ua ke ntawm qhov sib koom ua ke los yog chamfered qhov, lub laum tiaj tus tuaj yeem siv los tshem tawm cov thawj coj tsim rau ntawm qhov chaw ua haujlwm.
Cov xov yog yob tsim thiab machined threads tuaj yeem tiv taus siab dua thiab torque.
Qhov zoo:
1. Cov xov tuaj yeem tiv taus siab dua thiab torque
2. Tsis muaj nti ua, tsis muaj pov tseg tom qab ua tiav
3. Lub forming precision ntawm tus thawj yog siab.
4. Haum rau ntau yam tapping tshuab.
5. Kev kub ceev, kev pab lub neej ntev, txhim kho ntau lawm.
6. Haum rau ntau yam khoom siv uas tuaj yeem kub-melted drilling.
Daim ntawv thov:
◆ Kev lag luam tsheb
◆ Kev lag luam tsheb kauj vab
◆ Stainless hlau rooj tog
◆ Aerospace
◆ Central rhaub
◆ Teeb pom kev lag luam
◆ Tshuab thiab hlau tsim
◆ Electroplating thiab txheej kev lag luam
Kev faib tawm ntawm kev xyaum kub:
Nyob ntawm seb lub thickness ntawm lub workpiece yuav tsum tau drilled los ntawm, kub xyaum yog muaj nyob rau hauv ob ntev:
Kev xyaum luv luv: haum rau kev nkag mus rau workpiece thickness hauv 0.8mm -3mm.
Kev xyaum ntev: siv los nkag rau workpiece thickness ntau dua 3 hli -12mm.
Raws li qhov xav tau ntawm qhov chaw ua haujlwm tom qab nkag los ntawm kev xyaum kub, lub laum kub muaj ob qhov tshwj xeeb:
Standard Kub Laum: Lub laum kub nkag mus rau qhov chaw ua haujlwm thiab rub lub hav txwv yeem thaum tsim lub nplhaib tsa rau ntawm qhov chaw ua haujlwm.
Flat hom kub laum: Lub laum kub nkag mus rau lub workpiece thiab ncab los ua ib lub bushing, thiab tib lub sij hawm txiav tawm lub nplhaib convex rau ntawm qhov chaw ntawm lub workpiece, thiab qhov chaw ntawm lub workpiece yog du.
Rau drilling stainless hlau,txoj kab uas hla ntawm cov xov yog M8 los yog saum toj no, txoj kab uas hla ntawm lub laum kub yuav tsum loj dua los ntawm 0.1 hli thiab qhov ceev ntawm lub laum yuav tsum raug txo los ntawm 10-20%.
Rau cov hlau tsis muaj hlau,qhov ceev ntawm qhov xyaum yuav tsum tau nce 50%.
Awind tsom mus rau kev kawm thiab tsim cov thev naus laus zis tshiab, txhawb kev txhim kho kev lag luam, thiab ua cov thermal tsim kev daws teeb meem ntau ntxiv nrog cov neeg siv khoom xav tau!
