Dab tsi yog thermal simulation
Thermal simulation yog kev soj ntsuam ntawm qhov kub thiab txias ntawm cov khoom siv nrog cov khoom siv hluav taws xob, txhawm rau coj cov cua sov dissipation tsim ntawm cov khoom siv thiab tsis txhob siv hluav taws xob tsis ua hauj lwm lossis txawm tias kub hnyiab. Siv cov thermal simulation los simulate cov cua kub ntawm cov khoom siv hluav taws xob, tsim cov dab dej kub kom pom tias lawv ua tau raws li qhov yuav tsum tau ua, ua cov kev sim, thiab thaum kawg tsim cov khoom loj.
Qhov zoo ntawm kev siv thermal simulation:
1. Qhia cov cuab yeej siv hluav taws xob hluav taws xob tsim hluav taws xob: Los ntawm simulating qhov kub ntawm cov khoom siv hluav taws xob, thermal simulation tuaj yeem pab tsim cov dab dej kub kom ntseeg tau tias lawv ua tau raws li qhov xav tau ntawm cov cua kub dissipation thiab zam cov khoom tsis ua hauj lwm lossis kev puas tsuaj los ntawm qhov kub thiab txias.
2. Txhim kho cov khoom tsim kom zoo: Cov khoom siv hluav taws xob tuaj yeem siv los txiav txim siab qhov ua tau zoo ntawm cov khoom siv hluav taws xob sib txawv, yog li nrhiav kev pom zoo tsim kev daws teeb meem sai dua thiab tsis txhob nkim sij hawm thiab nyiaj txiag ntawm kev sim ntau yam. Qhov no yog qhov tseem ceeb heev rau kev txhim kho cov khoom lag luam thiab kev sib tw ua lag luam.
3. Daim ntawv thov dav: Thermal simulation tsis tsuas yog siv rau hauv kev tsim cov khoom siv hluav taws xob, tab sis kuj txuas mus rau lwm qhov chaw, xws li kev cuam tshuam ntawm cov cua txias hauv tsev qhov hluav taws xob layout ntawm sab hauv tsev txias huab cua, nrog rau kev cuam tshuam rau tib neeg lub cev kub. disipation. Tsis tas li ntawd, kev ua haujlwm thermal simulation software tuaj yeem simulate combustion thiab lwm yam xwm txheej kub, muab kev daws teeb meem rau ntau yam teeb meem kub.
4. Dynamic simulation ntawm hlau cua sov thiab deformation txheej txheem: Thermal simulation simulate dynamically simulate cua sov thiab deformation txheej txheem ntawm hlau, xws li dov thiab forging txheej txheem, nruam casting thiab smelting txheej txheem, vuam txheej txheem, hlau kho cua sov txheej txheem, mechanical thermal qaug zog, thiab Lwm yam ntawm cov txheej txheem dynamic simulation xeem. Qhov no muab lub hauv paus kev sim txhim khu kev qha rau cov neeg sim tsim thiab txhim kho lawv cov txheej txheem tsim khoom
5. Txhim kho kev ua tau zoo thiab raug: Los ntawm kev simulation, qhov kev ua tau zoo thiab cov teeb meem muaj peev xwm ntawm cov khoom tuaj yeem kwv yees thaum lub sijhawm tsim qauv, yog li txo cov nqi tsim khoom thiab kuaj cov qauv ntawm lub cev thiab txhim kho kev txhim kho.

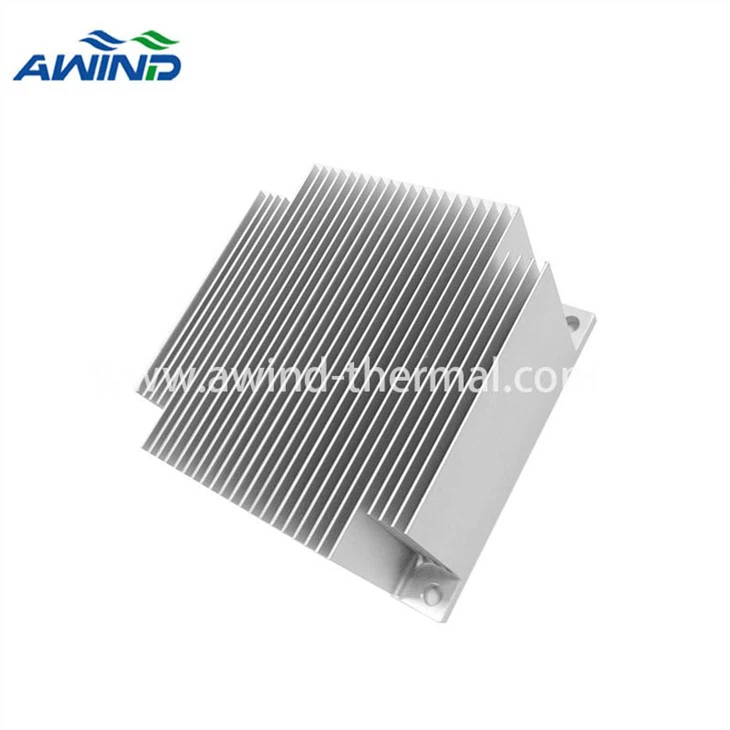

25KW loj loj AL 6063 tus pin fins heatsink thermal simulation qhia
Tsim cov tswv yim
Txias txoj kev: yuam convection;
Ambient temp. Kub: 40 degree
CPU watt poob: 1250W
CPU dim: 123mm * 494mm
Max kub: 70 degree
Kub dab dej dims: L210 * W514 * H49mm
Ntxuam: 4.5m / s
Kev daws: Cov txheej txheem kub thiab txheej txheem
Qauv (Extrusion) khoom: AL6063-T5
Lub hauv paus loj: 514mm * 210mm * 13mm
Fin loj: 210mm * 36mm * 1mm (140pcs)
Kev daws: Simulation qauv (ICEPAK)

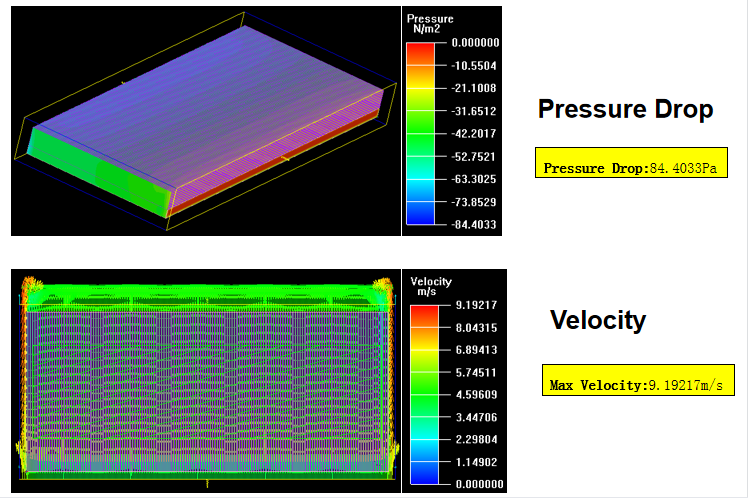

Kev daws: Siab poob thiab Velocity
Kev daws: Heatsink Temperature
Xaus
Nrog rau qhov tsim no, simulation tshwm sim ntawm kev daws raws li Spec.
